方形无影光源
产品类别:UST

产品特点

          1.四边形无影照射效果,不同的工作距离能形成不同的光照环境,可以形成幅面较大的方形高均匀视野;
          2.可替代环形光实现更高均匀性照明;
          3.铝材外壳高效散热,使用寿命长。

应用领域

          1.大面积不平整表面检测;
          2.印刷字符、条码、指纹等识别;
          3.键盘、大面积反光标签检测。

型号说明

照射原理

应用案列

选型指南



型号 颜色 电压(DCV) 功率(W) 发光尺寸(mm) 外型尺寸(mm) 规格书下载
UST-RIH25 R,G,B,W,UV,IR 12/24 0.9 12*13 25*25*8 点击下载
UST-RIH32 R,G,B,W,UV,IR 12/24 1.9 24*24 32*32*26 点击下载
UST-RIH48 R,G,B,W,UV,IR 12/24 2.8 36*36 48*48*20 点击下载
UST-RIH65 R,G,B,W,UV,IR 12/24 3.6 58*58 65*65*20 点击下载
UST-RIH75 R,G,B,W,UV,IR 12/24 4.8 63*63 75*75*30 点击下载
UST-RIH100 R,G,B,W,UV,IR 12/24 6.8 80*80 100*100*30 点击下载

图片展示

产品参数

Product features: quadrilateral shadowless lighting effects, different working distance can form different light environment, can form a large square high uniform field;
Alternative optical ring to achieve higher uniformity of illumination;
Aluminum shell of high heat, long service life.
Application: large area uneven surface detection;
Printing character, bar code, fingerprint recognition;
Keyboard, a large reflective label detection.

Selection guide:



光源型号 外壳尺寸(mm) 内径(mm) 发光区(mm) 可选颜色 功率 规格书下载
12V 24V
UST-RIH32 32*32*26 14.3*14.3 24*24 R/B/W/P/O/Y/IR(注①) 80mA 40mA 点击查看
UST-RIH48 48*48*30 10*10 36*36 R/B/W/P/O/Y/IR 240mA 120mA 点击查看
UST-RIH75 75*75*30 20*20 63*63 R/B/W/P/O/Y/IR 400mA 200mA 点击查看
  注①:R为红色(Red)  B为蓝色(Blue)  W为白色(White)  P为紫色(Purple)  O为橙色(Orange)  Y为黄色(Yellow)   IR为红外(Infra-red)有850和940

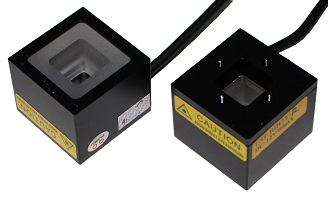

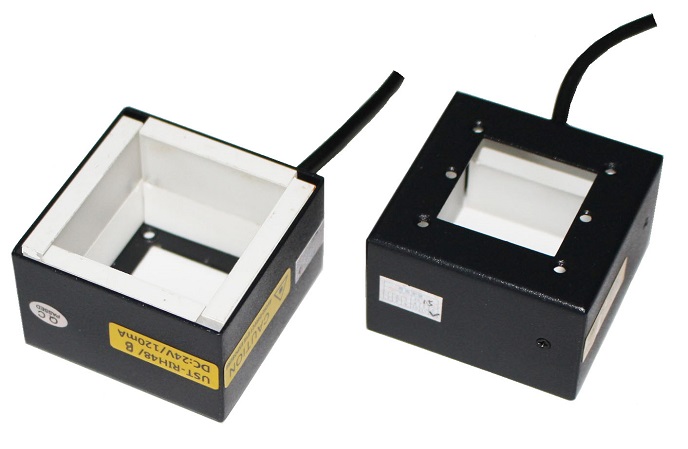

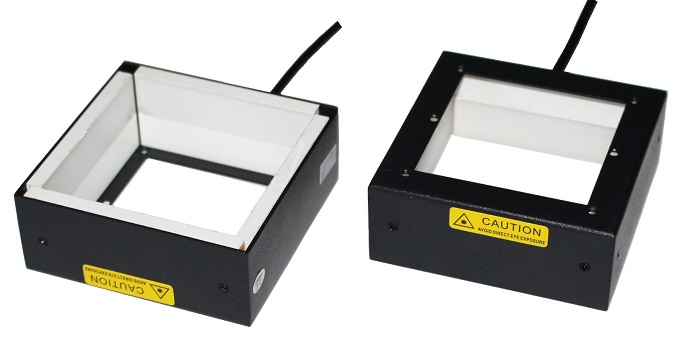

The picture shows:
