外置同轴光源
产品类别:UST

产品特点

          1.采用高密度高亮LED阵列,光线均匀;
          2.高级镀膜分光,减少光损,成像清晰;
          3.与相机一侧安装方便,光学透镜防尘;
          4.铝材外壳高效散热,使用寿命长。

应用领域

          1.产品的字符条码检测;
          2.晶元和芯片的破损检测;
          3.反光物品的表面划伤检测;
          4.广泛应用于被测产品反光度极高的设备

型号说明

照射原理

应用案列

选型指南



型号 颜色 电压(DCV) 功率(W) 发光尺寸 外型尺寸 规格书下载
UST-CO15 R,G,B,W,UV,IR 12/24 0.96 15*15 50*25*25 点击下载
UST-CO20 R,G,B,W,UV,IR 12/24 1.92 20*20 58*30*32 点击下载
UST-CO28 R,G,B,W,UV,IR 12/24 2.88 28*28 65.5*38*41 点击下载
UST-CO30 R,G,B,W,UV,IR 12/24 2.88 30*30 65.5*38*41 点击下载
UST-C040 R,G,B,W,UV,IR 12/24 5.76 40*40 91*50*53 点击下载
UST-CO50 R,G,B,W,UV,IR 12/24 9.6 50*50 111.2*60*62 点击下载
UST-CO60 R,G,B,W,UV,IR 12/24 12 60*60 121.2*70*72 点击下载
UST-CO70 R,G,B,W,UV,IR 12/24 16.8 70*70 132,2*80*72 点击下载
UST-CO80 R,G,B,W,UV,IR 12/24 24.9 80*80 140*90*92 点击下载
UST-CO90 R,G,B,W,UV,IR 12/24 25.9 90*90 173*100*102.5 点击下载
UST-CO100 R,G,B,W,UV,IR 12/24 33.6 100*100 183*110*112 点击下载
UST-CO110 R,G,B,W,UV,IR 24 36.7 110*110 225*120*122 点击下载
UST-CO120 R,G,B,W,UV,IR 24 48 120*120 235*160*132 点击下载
UST-CO150 R,G,B,W,UV,IR 24 52.8 150*150 266*160*162 点击下载
UST-CO200 R,G,B,W,UV,IR 24 117.6 200*200 310*210*214 点击下载

图片展示





产品参数

Product features: use high density bright LED array, uniform light;
Advanced coating light, reduce optical loss, clear imaging;
Convenient installation and the side of the camera, optical lens dustproof;
Aluminum shell of high heat, long service life.
Application: the character of bar code detection products;
Damage detection of wafer and chip;
Scratch the surface of reflective material detection;
Widely used in the products to be tested reflective high equipment.

Selection guide:



光源型号 外形尺寸(mm) 发光面(mm) 颜色 功率 规格书下载
12V 24V
UST-CO15/W/24/40mA 50*25*25 15*15 R、B、W 40mA 20mA 点击查看
UST-CO20/W/24/80mA 57.4*31.5*31.5 20*20 R、B、W 80mA 40mA 点击查看
UST-CO28/W/24/240mA 65.4*38.5*38.5 28*28 R、B、W 240mA 120mA 点击查看
UST-CO30/W/24/120mA 65.4*38.5*38.5 30*30 R、B、W 120mA 60mA 点击查看
UST-CO40/W/24/240mA 91*49.5*50.5 40*40 R、B、W 240mA 120mA 点击查看
UST-CO50/W/24/400mA 111*60*60 50*50 R、B、W 600mA 300mA 点击查看
UST-CO60/W/24/460mA 121*70*70 60*60 R、B、W 1280mA 640mA 点击查看
UST-CO80/W/24/960mA 140*88*88 80*80 R、B、W 960mA 480mA 点击查看
UST-CO100/W/24/1.4A 162*110.5*110.5 100*100 R、B、W 1400mA 700mA 点击查看
特点:1.采用高密度高亮LED阵列,光线均匀;
     2.高级镀膜分光,减少光损,成像清晰;
     3.与相机一侧安装方便,光学透镜防尘;
     4.铝材外壳高效散热,使用寿命长。
应用领域:1.产品的字符条码检测;
         2.晶元和芯片的破损检测;
         3.反光物品的表面划伤检测;
         4.广泛应用于被测产品反光度极高的设备。

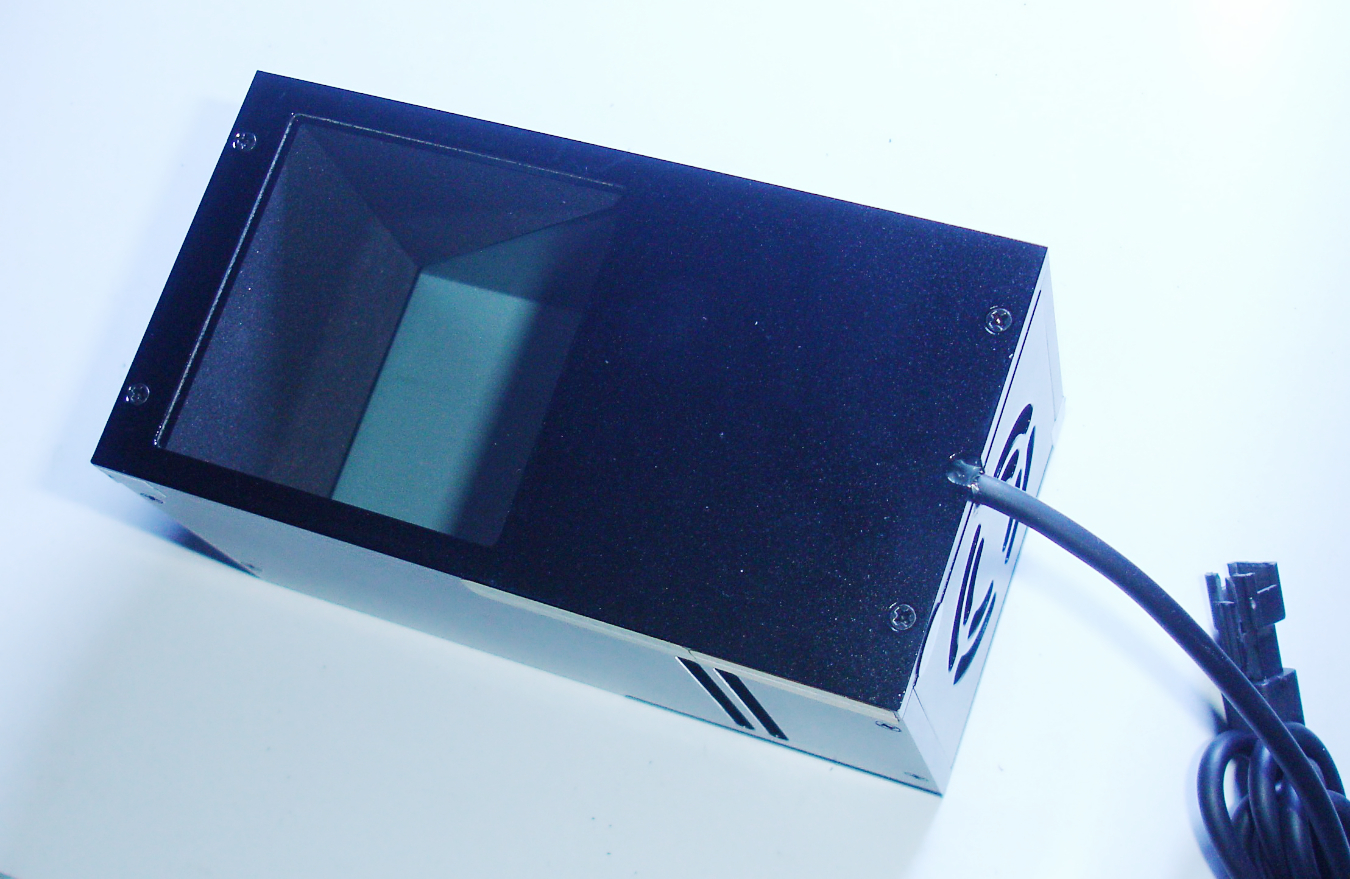

The picture shows:
