碗光源(球积分光源、穹顶光源)
产品类别:UST

碗形光源(球积分光源、穹顶光源)

产品特点

          1.采用高密度高亮LED阵列360度底部反光,通过有积分效果的半球内壁反射;
          2.整个被测产品的光照均匀;
          3.铝材外壳高效散热,使用寿命长。

应用领域

          1.表面弧形和表面凹凸的产品检测;
          2.曲面喷码和激光打字的检测;
          3.金属玻璃及反光较强物品的表面检测。

型号说明





照射原理





用案列

选型指南

型号 颜色 电压(DCV) 功率(W) 发光直径(mm) 外径(mm) 高度(mm) 规格书下载
UST-RID40 R,G,B,W,UV,IR 24 2.4 28 44 30 点击下载
UST-RID50 R,G,B,W,UV,IR 24 2.88 32 54 31.5 点击下载
UST-RID70 R,G,B,W,UV,IR 24 9.6 52 70 47 点击下载
UST-RID80 R,G,B,W,UV,IR 24 12 62 84 47 点击下载
UST-RID100 R,G,B,W,UV,IR 12/24 8.16 66 116 57 点击下载
UST-RID120 R,G,B,W,UV,IR 12/24 10.08 84 134 64 点击下载
UST-RID150 R,G,B,W,UV,IR 12/24 12 116 166 83 点击下载
UST-RID180 R,G,B,W,UV,IR 12/24 19.2 138 198 92 点击下载
UST-RID250 R,G,B,W,UV,IR 12/24 23.52 216 266 130 点击下载

图片展示





产品参数

A bowl shaped light source (ball integral light source)
Product features: use high density bright LED array 360 degree reflective bottom, by reflecting hemisphere wall has integral effect;
The products being tested uniform illumination;
Aluminum shell of high heat, long service life.
Application: the product detection of surface arc and surface asperity;
Detection of surface printing and laser typing;
Surface detection of metal glass and reflective strong items.

Selection guide:

光源型号 外径(mm) 内径(mm) 发光面直径(mm) 颜色 功率 规格书下载
12V 24V
UST-RID40/W/24/300mA 44 11.8 28 R、B、W、P、O、Y、IR 300mA 150mA 点击查看
UST-RID80/W/24/500mA 84 30 62 R、B、W、P、O、Y、IR 500mA 250mA 点击查看
UST-RID100/W/24/340mA 116 24.8 66 R、B、W、P、O、Y、IR 340mA 170mA 点击查看
UST-RID120/W/24/420mA 134 34.8 84 R、B、W、P、O、Y、IR 420mA 210mA 点击查看
UST-RID150/W/24/420mA 175 34 116 R、B、W、P、O、Y、IR 420mA 210mA 点击查看
UST-RID180/W/24/800mA 198 30 138 R、B、W、P、O、Y、IR 800mA 400mA 点击查看
UST-RID240/W/24/1320mA 260 48 193 R、B、W、P、O、Y、IR 1320mA 660mA 点击查看
特点:1.采用高密度高亮LED阵列360度底部反光,
       通过有积分效果的半球内壁反射;
     2.整个被测产品的光照均匀;
     3.铝材外壳高效散热,使用寿命长。
应用领域:1.表面弧形和表面凹凸的产品检测;
         2.曲面喷码和激光打字的检测;
         3.金属玻璃及反光较强物品的表面检测。

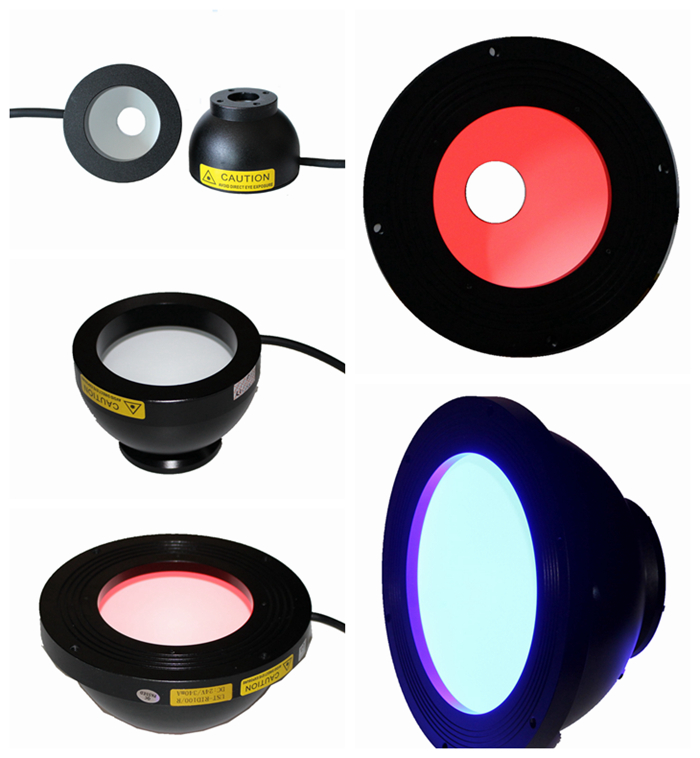

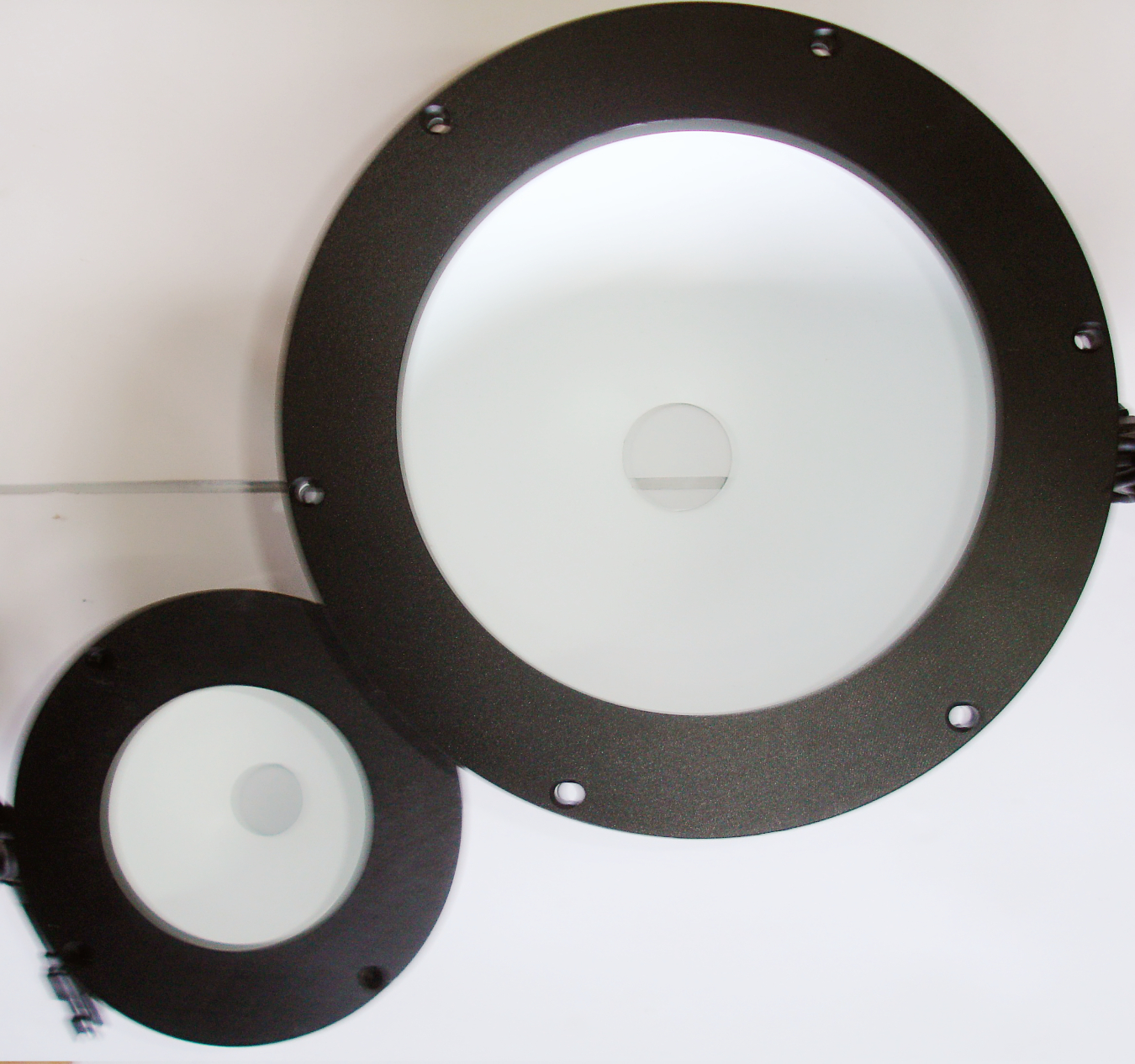

The picture shows:
